  • Nickel Wire Mesh
  • Nickel Wire Mesh

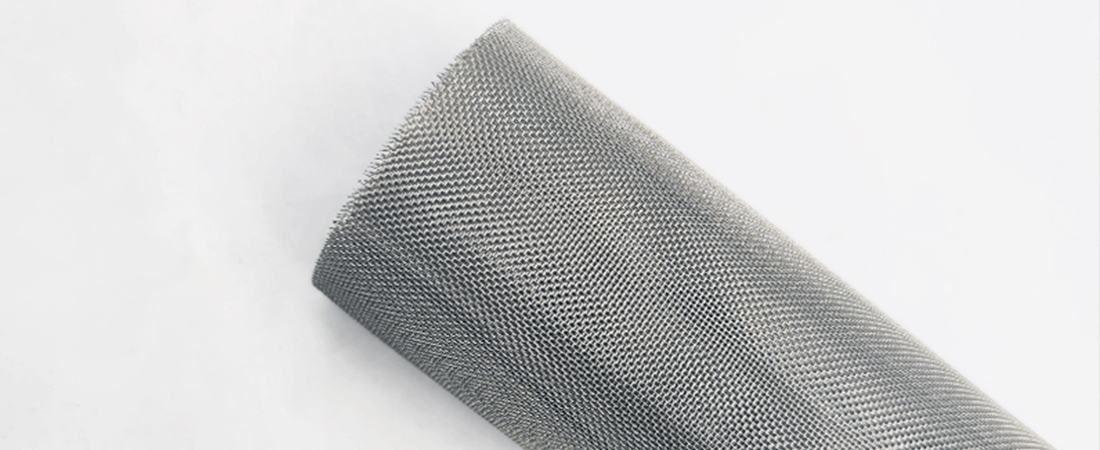

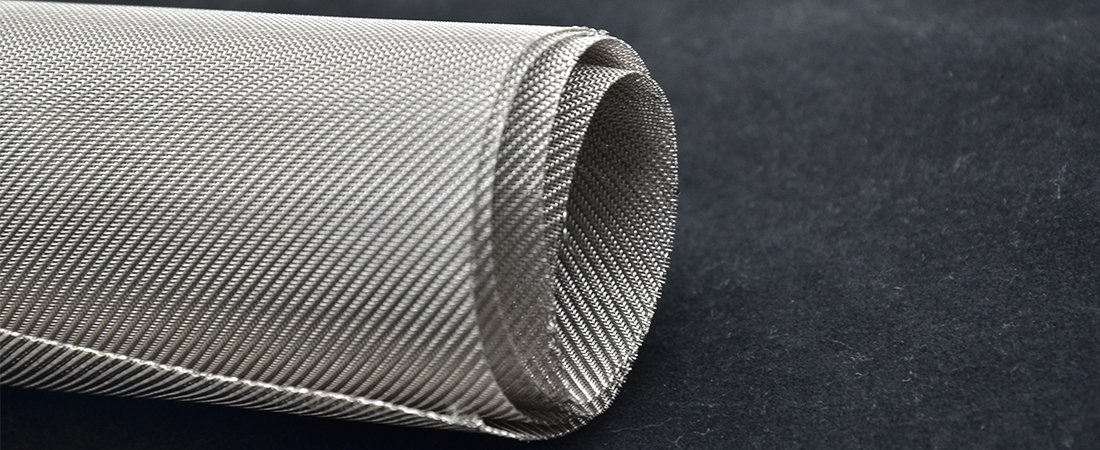

Nickel woven wire mesh is manufactured from nickel wire with high purity not less than 99%.
Pure Nickel Wire Mesh for Electrode Material Hydrogen Production Equipment.
Electroformed fine wire mesh Nickel sheets are manufactured by a plating process that creates a fine, high quality mesh. Nickel wire mesh is corrosion resistant and suitable for alkaline fuel cells.
Application of nickel wire mesh in ion-exchange membrane electrolyzer with membrane electrode distance
The elastic cathode is composed of buffer mesh, protection mesh and surface mesh. The buffer mesh is composed of four layers of parallelogram nickel wire, φ 0.15 mm * 1 piece * 2 layers * 2 pieces; Add a layer of protective net to regulate the elastic cathode. The protective net is φ 0.15 mm * 1 piece; The outermost layer is nickel wire surface net coated with active coating φ 0.15 mm * 1 piece/40 mesh
Nickel wire mesh is used as sintering plate for electronic components
Sintering plate for ceramic materials and electronic components. The base plate is a mesh nickel plate with dense mesh. The mesh nickel sheet includes several parallel transverse nickel wires and several parallel longitudinal nickel wires. The transverse nickel wires and longitudinal nickel wires are interwoven into a mesh
Mesh Wire Dia.(inches) Wire Dia.(mm) Openging(inches) Openging(mm)
1 0.135 3.5 0.865 21.97
1 0.08 2 0.92 23.36
1 0.063 1.6 0.937 23.8
2 0.12 3 0.38 9.65
2 0.08 2 0.42 10.66
2 0.047 1.2 0.453 11.5
3 0.08 2 0.253 6.42
3 0.047 1.2 0.286 7.26
4 0.12 3 0.13 3.3
4 0.063 1.6 0.187 4.75
4 0.028 0.71 0.222 5.62
5 0.08 2 0.12 3.04
5 0.023 0.58 0.177 4.49
6 0.063 1.6 0.104 2.64
6 0.035 0.9 0.132 3.35
8 0.063 1.6 0.062 1.57
8 0.035 0.9 0.09 2.28
8 0.017 0.43 0.108 2.74
10 0.047 1 0.053 1.34
10 0.02 0.5 0.08 2.03
12 0.041 1 0.042 1.06
12 0.028 0.7 0.055 1.39
12 0.013 0.33 0.07 1.77
14 0.032 0.8 0.039 1.52
14 0.02 0.5 0.051 1.3
16 0.032 0.8 0.031 0.78
16 0.023 0.58 0.04 1.01
16 0.009 0.23 0.054 1.37
18 0.02 0.5 0.036 0.91
18 0.009 0.23 0.047 1.19
20 0.023 0.58 0.027 0.68
20 0.018 0.45 0.032 0.81
20 0.009 0.23 0.041 1.04
24 0.014 0.35 0.028 0.71
30 0.013 0.33 0.02 0.5
30 0.0065 0.16 0.027 0.68
35 0.012 0.3 0.017 0.43
35 0.01 0.25 0.019 0.48
40 0.014 0.35 0.011 0.28
40 0.01 0.25 0.015 0.38
50 0.009 0.23 0.011 0.28
50 0.008 0.20` 0.012 0.3
60 0.0075 0.19 0.009 0.22
60 0.0059 0.15 0.011 0.28
70 0.0065 0.17 0.008 0.2
80 0.007 0.18 0.006 0.15
80 0.0047 0.12 0.0088 0.22
90 0.0055 0.14 0.006 0.15
100 0.0045 0.11 0.006 0.15
120 0.004 0.1 0.0043 0.11
120 0.0037 0.09 0.005 0.12
130 0.0034 0.0086 0.0043 0.11
150 0.0026 0.066 0.0041 0.1
165 0.0019 0.048 0.0041 0.1
180 0.0023 0.058 0.0032 0.08
180 0.002 0.05 0.0035 0.09
200 0.002 0.05 0.003 0.076
200 0.0016 0.04 0.0035 0.089
220 0.0019 0.048 0.0026 0.066
230 0.0014 0.035 0.0028 0.071
250 0.0016 0.04 0.0024 0.061
270 0.0014 0.04 0.0022 0.055
300 0.0012 0.03 0.0021 0.053
325 0.0014 0.04 0.0017 0.043
325 0.0011 0.028 0.002 0.05
400 0.001 0.025 0.0015 0.038
500 0.001 0.025 0.0011 0.028
635 0.0009 0.022 0.0006 0.015
